Rod End

> Products > Rod End & Accessories > Rod End

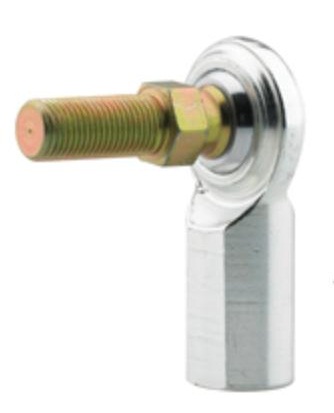

CF-S, STUD

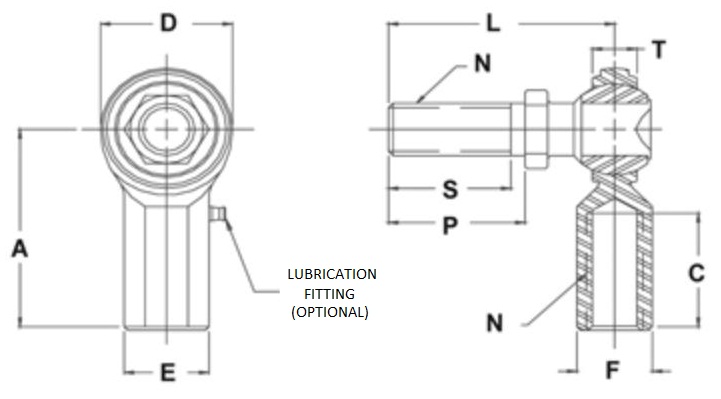

FEMALE ROD ENDS, METAL TO METAL WITH STUD

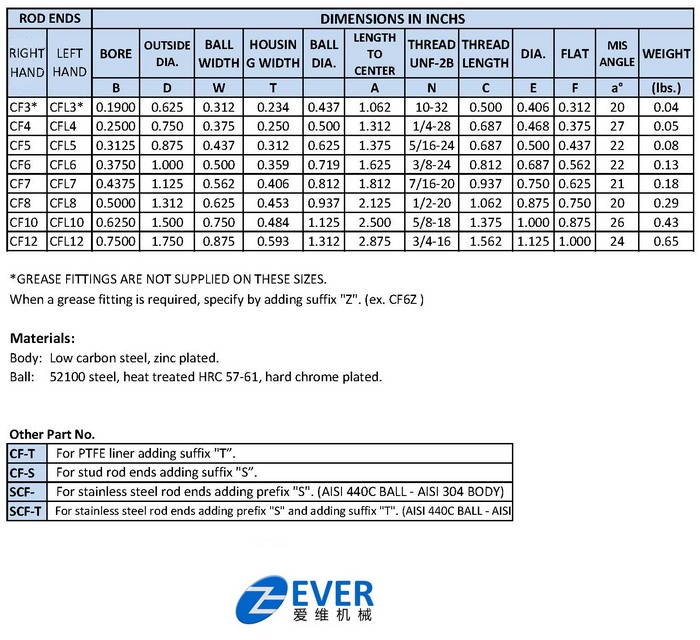

CF3S/CF4S/CF5S/CF6S/CF7S/CF8S/CF10S/CF12S/CF16S

Bore Size:0.19” - 1”
Thread UNF-3A:10-32 to 1-1/4-12

Material:
Body:

Low Carbon Steel,
Zinc Plated
Ball:
52100 Steel,
Hard Chrome Plated, HRC57-61
Stud:
Low Carbon Steel,
Zinc Plated

Description
Previous:CM, METAL TO METAL       Next:CM-S, STUD
